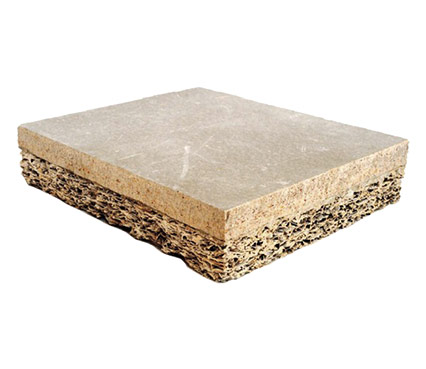

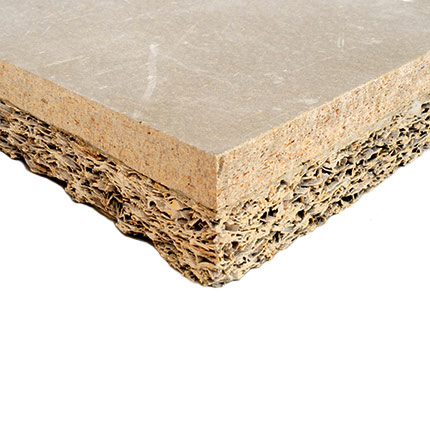

Coupled panels made with high density cement bonded particle boards 1350 Kg/m³ and an insulating mineralized wood wool panels.
The Betoneco coupled panel is excellent for the dry roof and floor systems insulation that require a high mass due to thermal displacement and noise reduction. The external panel is in fact composed of high density cement bonded particle board (1350 Kg/m³), with a high compressive strength equal to 9000 kPa and fire certified in class A2. The mineralized wood wool panel is highly insulating and considerably increases the thermal displacement.
The Betoneco insulating panel offer an higher acoustic insulation, high thermal displacement and it has one side with a smooth cementitious finish that is particularly suitable as a support for many types of finishes. In particular, the panel is used in roofs, floors, dry insulated screeds, and for various uses in green building constructions.
Due to its mechanical and insulating characteristics, this panel is suitable for use in screed and roof systems as it has excellent properties as a stiffening layer and a high thermal-acoustic insulation power. The thermal displacement of the structure increases.
The Betoneco panel allows to insulate efficiently every part of the building:
• it can be used as insulation for roofs and floors that require a high mass due to thermal lag and noise reduction;

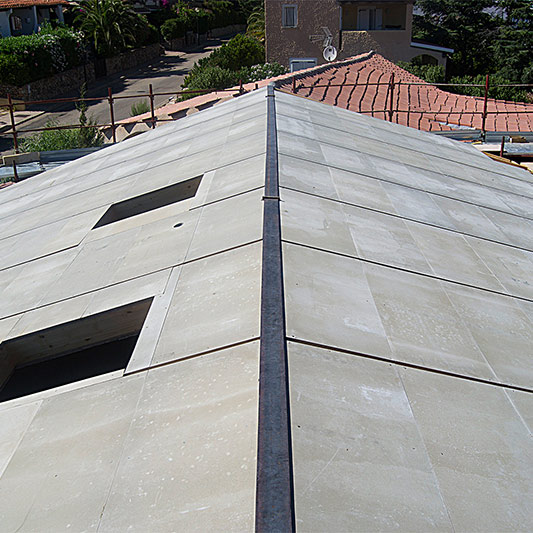

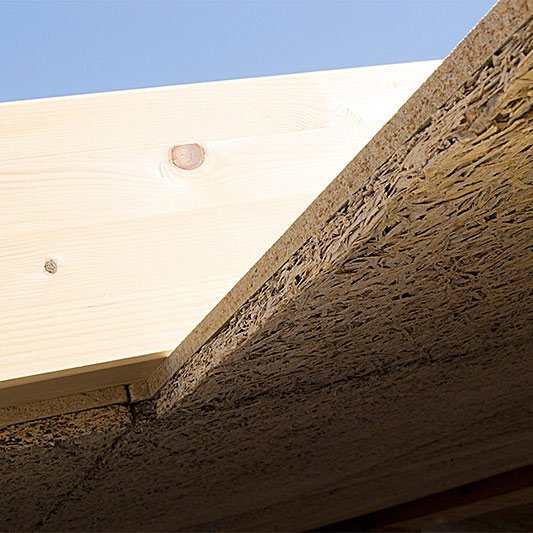

• also ideal for the insulation of both flat and sloping roofs, as the cement bonded particle board protects the wood fiber from humidity and fire (class A2), the entire panel can be walked on, therefore suitable for laying on surfaces horizontal;
• it has a very high compressive strength (9,000.00 KPa).
If you are interested in this type of solution, we recommend that you take a look at our other coupled products in the section Coupled panels.
The installation is closely linked to the type of use, mainly with screws, we suggest requesting the most suitable installation instruction from our technical office.
All materials are also recyclable and certified. The BetonWood cement bonded particle board is also made exclusively with wood from controlled forests in compliance with the FSC directives (Forest Stewardship Declaration).
The cement bonded particle board has so many advantages, including:
• very high compression resistance;
• high resistance to climate change and frost;
• insects and fungi are unable to attack or damage it;
• thanks to its physical and mechanical characteristics, the product is considered one of the best materials for light weight constructions;
• incombustible (A2 according to the DIN 4102 Standard);
• free of formaldehyde and free of asbestos, asbestos etc .;
• free of recycled inks (present in materials with recycled cellulose);
• resistant to atmospheric agents;
• workable with wooden tools;
• high flow rate;
• recyclable, ecological, respects the environment;
• construction material tested and authorized according to the European standards in force.
For this type of cement bonded particle board and mineralized wood wool we do not have available sizes and thicknesses; for the order, minimum orders of 300 square meters are required. In any case, we strongly recommend that you contact our technical office.
• the delivery of the material is normally carried out by lorries, considering the high mass of the pallets it is advisable for the recipient to have suitable equipment and mechanical lifting means with a minimum capacity of 35/40 quintals for unloading the goods;
• it is advisable to deposit the boards overlapping them one on top of the other and in order to keep them in a horizontal position, with square section supports and a minimum spacing of 80 cm;
• the transport of the single slabs must be done by cutting, never horizontally;
• avoid direct exposure to sunlight and adequately cover the material to avoid excessive accumulation of dust;
• the pallets are equipped with an upper protective plate, which must be repositioned each time above the other boards and ballasted at the top to avoid distortion of the plates below it.
| Characteristics | Values |
|---|---|
| Density kg/m³ | 1350 |
| Fire reaction class according to EN 13501-1 | A2-fl-s1 |
| Thermal conductivity coefficient λD W/(m·K) | 0,26 |
| Specific heat J/(kg·K) | 1880 |
| Vapour diffusion resistance μ | 22,6 |
| Coefficient of linear thermal expansion α | 0,00001 |
| Thick swelling after 24h of permanence in water | 1,5% |
| Air permeability l/min.m² MPa | 0,133 |
| Superficial PH value | 11 |
| Flexural strength σ (N/mm²) | min.9 |
| Transverse tensile strength N (N/mm²) | min.0,5 |
| Shear resistance τ (N/mm²) | 0,5 |
| Elasticity module Ε (N/mm²) | 4500 |
| Resistance to distributed load kPa | 9000 |
| Concentrated load resistance kN | 9 |
| Characteristics | Values |
|---|---|
| Density kg/m³ | 8÷26 |
| Fire reaction class according to EN 13501-1 | B-s1-d0 |
| Thermal conductivity coefficient λD W/(m·K) | 0,046 |
| Specific heat J/(kg·K) | 2100 |
| Vapour diffusion resistance μ | 5 |
| Flexural resistance (N/mm²) | 0,4÷0,7 |
| Tensile strength perpendicular to the faces (kPa) | ≥100 |
| Acoustic insulation (dB) | 26÷35 |
